Delta-Q
Battery Chargers
Our Delta-Q line-up of high-frequency on-board and off-board replacement charger for use with either lead-acid or lithium batteries. Chargers have custom-matched charging algorithms to help extend battery life. They feature easy system integrations with CAN bus communication. Each charger has customized cabling and charge profiles for best application fit.
All Delta-Q QuiQ, IC, and RC Series chargers are IP66-rated. The seal prevents water, mud, and vibration from affecting charger performance.
QuiQ Series
Flexible and adaptable with superior charging performance. All QuiQ Series chargers have identical mechanical designs making them easy to deploy across machine platforms based upon the needed output power and voltage. They are available in 24-, 36-, 48-, and 72-Volt packs and may be used as either on-board or off-board units.

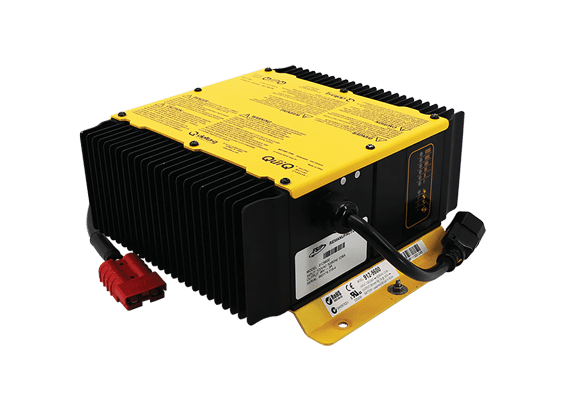

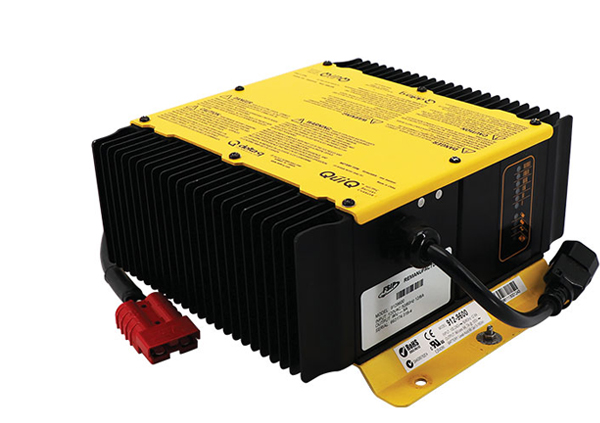

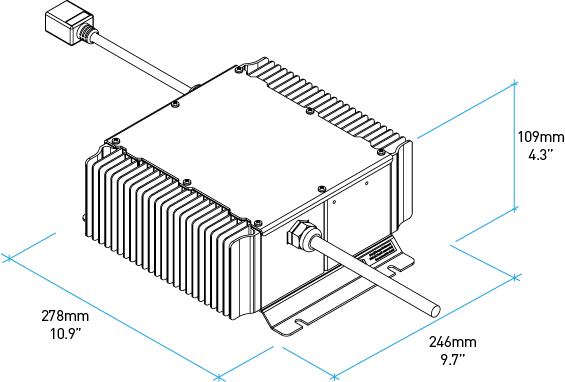

QuiQ 1000
| DC Output | Maximum DC Output power | Maximum DC output current |
|---|---|---|
| 24V | 695W | 25A |
| 36V | 875W | 21A |
| 48V | 1000W | 18A |
| 72V | 1000W | 12A |
| 96V | 945W | 8.5A |
| AC input voltage range | AC input frequency | AC input connector | DC output connector |
|---|---|---|---|
| 85-265VAC | 45/65 Hz | IEC320/C14 with country-specific cord | OEM specific with 12 AWG wire |
A small, lightweight, advanced, high frequency charger. The charger is IP66-rated and is passively cooled without the use of fans so it can withstand extreme temperatures, moisture, and high vibration. The QuiQ charger is preprogrammed with 10 charge profiles. Commonly used on golf cars and sweeper-scrubbers.
- For lead acid and lithium-ion batteries
- Can be used as an on- or off-board battery charger
- Holds up to 10 optimized charge profiles
- Usable on any single-phase electrical grid worldwide
- Multi-color LED indicator for charging status and fault/error
- Integrated charge cycle and event tracking
- AC input ranges from 85-265V
- 92+% energy efficient
IC Series
IC Series battery chargers provide superior reliability, work with either lead acid or lithium-ion batteries and help ease electric drive vehicles and industrial equipment integration. The IC series features an IP66-rated sealed enclosure, optional CAN bus communication and USB host port for charge cycle data download and software updates.

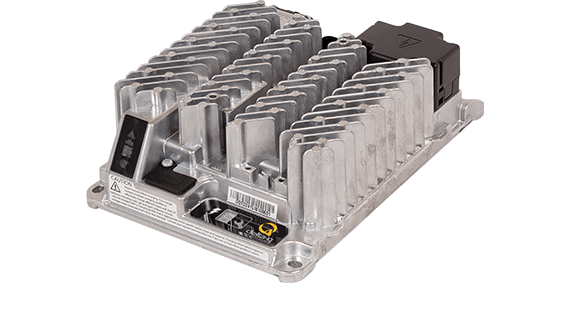

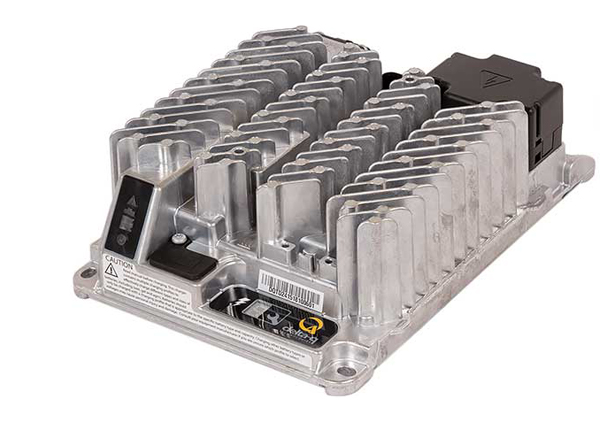

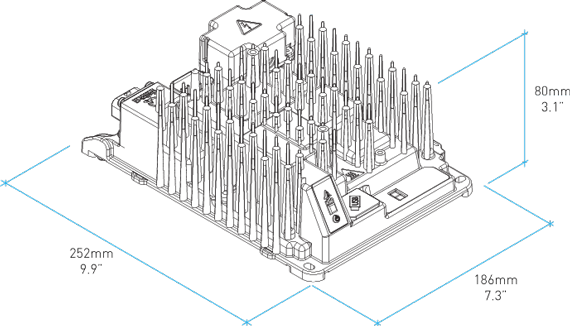

IC650
| DC Output | Maximum DC Output power | Maximum DC output current |
|---|---|---|
| 24V | 650W | 27.1A |
| 36V | 650W | 18.1A |
| 48V | 650W | 13.5A |
| AC input voltage range | AC input frequency | AC input connector | DC output connector |
|---|---|---|---|
| 85-270VAC | 50/60 Hz | IEC320/C14 with country-specific cord | M6 threaded fasteners for ring terminals |
A proven high-performance 650W industrial battery charger for electric pallet jacks, floor care machines, scissor lifts, or e-mobility scooters. The rugged die cast aluminum enclosure, sealed to IP66 standards, is designed for high reliability and a long life. The IC650 quickly changes between lead acid (wet/flooded, sealed AGM or gel) battery charge profiles for chemistries and brands with the touch of a button, Lithium-ion applications are supported by connecting to a battery management system or controller using CAN bus.
- For lead acid (wet/flooded, sealed AGM, or gel) or lithium-ion batteries
- Stores up to 25 charge algorithms
- Comes preprogrammed with 17 lead acid (wet/flooded, sealed AGM, or gel) algorithms
- Change charge profiles with the touch of a button
- For onboard or off-board applications
- Optional CAN bus communication
- Links the IC650 and other components
- Can provide for safe lithium-ion battery charging
- Machine diagnostics and servicing information
- Deep discharge battery recovery mode, will charge when voltage is as low as 1.2 volts
- USB port for data downloads and support software and charge profile updates
- AC input range of 85-270V, enabling global use on any single-phase electrical grid
- AC/DC cables are field-replaceable
- Includes software to support charger programming, battery troubleshooting and charge cycle data analysis
- Chargers can be customized with different AC and DC cabling, remote LED signaling, connectors, temperature sensors, and carrying handles
- CEC compliant
ICL Series
Lithium-ion specific battery charger for industrial and motive applications. Designed to optimally charge any lithium-ion battery system with any lithium-ion chemistry (LCO, NCA, NMC, LMO, LFP, LTO, etc.). It's IP66-rated to protect against dirt and fluids. The chargers' mechanical design and component selection resists vibration, shock and temperature extremes. Suitable for use with light electric vehicles, aerial platforms, and sport/utility vehicles.

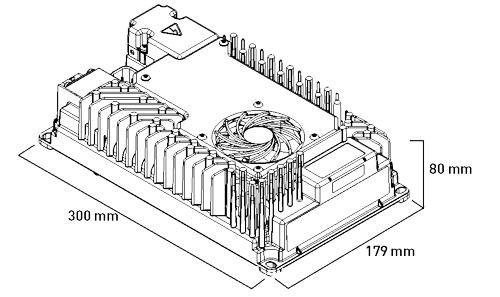

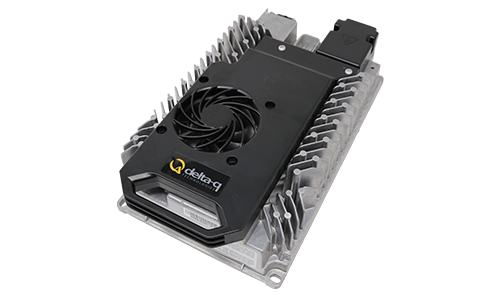

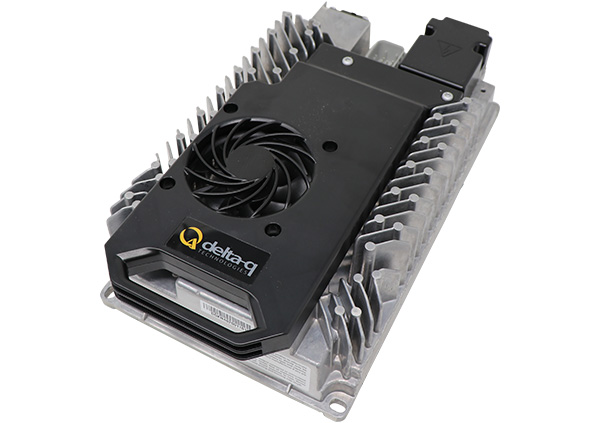

ICL1500
| DC Output | Lithium charging voltage | Maximum DC Output power | Maximum DC Output voltage | Maximum DC output current |
|---|---|---|---|---|
| 58V | 9-16 | 1500W | 58.0VDC | 20.0A |
| 85V | 14-24 | 1500W | 85.0VDC | 20.0A |
| 120V | 21-34 | 1500W | 120.0VDC | 15.0A |
| AC input voltage range | AC input frequency | AC input connector | DC output connector |
|---|---|---|---|
| 85-270VAC | 50/60 Hz | IEC320/C14 receptacle with Delta-Q AC cord retention tabs | DC terminals with Poka-Yoke, Negative M6 and Positive M8 threaded fasteners. Two conductors 10 to 12 AWG, or four conductors 12 AWG |
| Cooling: Forced convection with variable speed fan | |||
A high-frequency lithium-ion battery charger designed to seamlessly integrate with vehicle’s battery management system (BMS) via CAN communications (CanOpen or SAEJ1939)
- Optimized charge profile programming included*
- IP-66 rated
- AC/DC cables, not included
- Locking AC cable, 23-4750496 recommended
RC Series
CAN bus communication ensures seamless machine integration and AC/DC cabling is completely customizable. Applications include floor care machines, utility vehicles, aerial work platforms, and lift trucks.

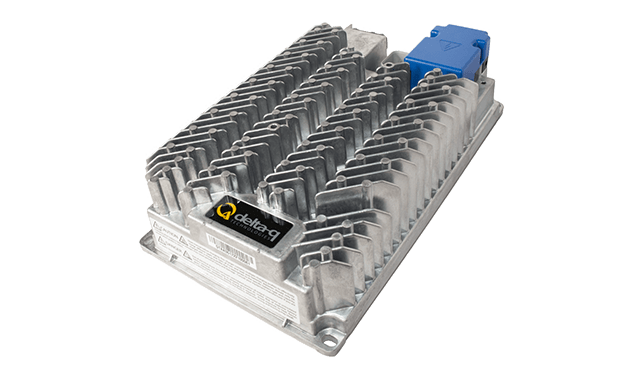

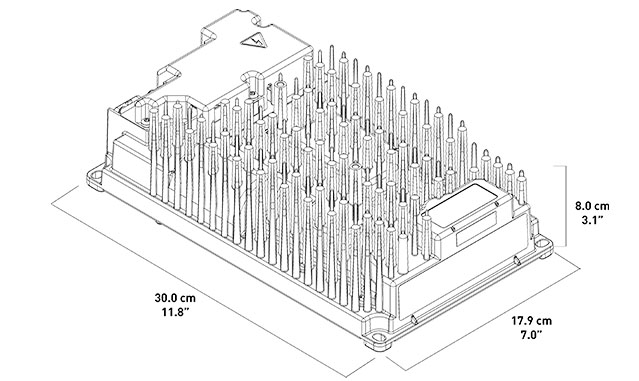

RC900
| DC Output | Maximum DC Output power | Maximum DC output current |
|---|---|---|
| 36V | 900W | 20.0A |
| 48V | 900W | 20.0A |
| AC input voltage range | AC input frequency | AC input connector | DC output connector |
|---|---|---|---|
| 85-265VAC | 50/60 Hz | IEC320/C14 with country-specific cord | Threaded fasteners for ring terminals (Negative: M6 / Positive: M8) |
- Easy integration
- CAN bus communication
- Convection cooling
- Mechanical design allows for any orientation
- Great for space restricted areas
